What QuickStructure 10 Can Do For You
Building Floor Arrangement Modelling
Simple and easy to use modelling user interface. Quickly create 2D Structural building models and turn it into 3D Models in a click.
For engineers bringing out the floor arrangements can be a big task.
Positioning the floor slabs, beams, columns, and foundations can be a big work.
QuickCivilSeries Series 10 (QS10) has a state-of-the-art modelling environment that helps
making floor arrangements modelling very easy, simple, and fast.
QS10 is built with innovative technologies that make modelling fun.

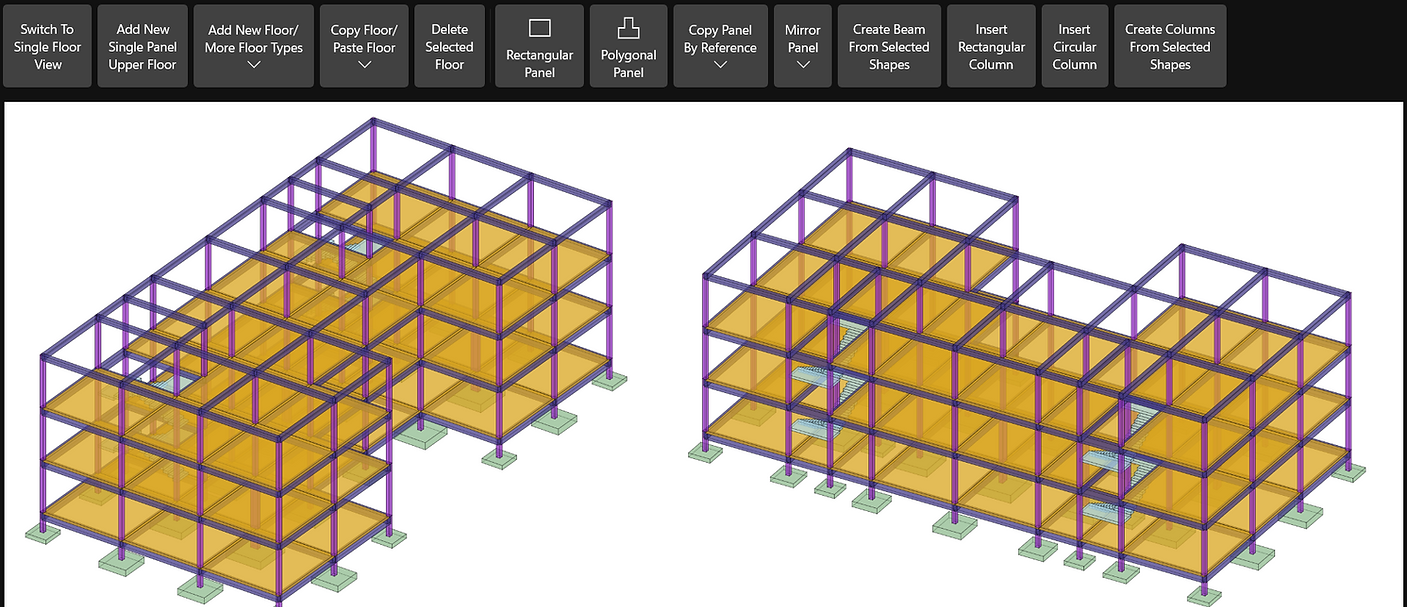

In QS10 you can view all the floors and foundation layout in one window so that you can have a visual check of how the floor columns connect to each other.
Automatic Deisgn
One click button that will guide you through the entire process, from loading to calculation sheet to detailed drawing.
Customisable Title block
QS10 allows you to make the title block your own.
You can start with the built-in title block no work required or open the title block and customise it.
You can even bring in your existing title block from AutoCAD as DXF and convert it to QS10 Title block.
3D modelling
QS10 creates beautiful 3D models in a click.
Model in 2D and leave the 3D for QS10.
It will generate 3D in different projections like
Top Front Left 3D view, Top Back Right 3D view and many other 3D views.
Elevations
QS10 creates different elevation sections so that you can see through the building and see all elements in elevation.
Design Data Sheets
QS10 provides design data sheets that will help an Engineer make quick and informed decisions about the design before finishing the work.
QS10 will show the design reinforcement data in the floor general arrangement so that in a glance the Engineer can see the design results and take decisions about the design quickly.
Bar Bending Schedule
Detailed bar bending schedule for steel reinforcements, volume of concrete and area of formwork
Structural Reinforced Concrete (RC) Design
Loading - All loadings are generated by the software.
Analysis - Full analysis from roof beam to foundation.
Design - Detailed reinforcement design.
Once modelling is complete with the software, then the fun begins.
You can relax and QS10 will carry out the building Loading, analysis, and element design from roof beam to slab panels to floor beam to columns and foundation. These designs are done automatically.
In QS10 the Engineer is always in control, you can set initial loading and design parameters like imposed load qk, strength of concrete fcu, strength of steel fy and many other parameters.
Structural RC detailing
QS10 creates Structural detailing of building elements including floor slab and beam detailing.
QS10 generates complete structural building detailing.
Days of drawing manually in AutoCAD are over.
QS10 has advanced detailing system that can generate complete and complex floor slab detailing. This is full detailed drawings of the floor slab with call-out lines and bar specifications.
QS10 can also generate floor beam detailing, column detailing, foundation detailing, and staircase detailing.
Design Settings
QS10 provides lots of design settings that enable engineers control the software and take control of the design.
In QuickStructureseries we believe that the Engineer is in charge. You can take control of the design and make it your own. Design should be personal to the Engineer, and QS10 helps you to do just that.
Design Sheets / Reports
QS10 generates Detailed design calculation sheets and Detailed title blocked drawing sheets.
Available in PDF, AutoCAD DXF and PNG file formats.
QS10 generates detailed calculations sheets automatically. You can generate summary or full calculations sheets whichever one you prefer. The calculation sheet shows full working design that are designed to be human readable.
